Media-Transport-Library

Run Guide on Windows

Media Transport Library requires Windows netuio driver Windows virt2phys driver and huge page to run.

1. System setup

1.1. Enable test sign in Windows if you choose to build non-signed drivers

bcdedit /set loadoptions DISABLE_INTEGRITY_CHECKS
bcdedit /set TESTSIGNING ON

1.2. Add huge page rights in Windows

Option #1: Local Security Policy

• Control Panel / Computer Management / Local Security Policy ( or Win+R, type secpol, press Enter).

• Open Local Policies / User Rights Assignment / Lock pages in memory.

• Add desired users or groups to the list of grantees. Privilege is applied upon next logon. In particular, if privilege has been granted to current user, a logoff is required before it is available.

Option #2: ntright.exe (if Local Security Policy is not available)

• Download and install rktools from https://technlg.net/downloads/rktools.exe

• Open PowerShell, run:

    ntrights.exe +r SeLockMemoryPrivilege -u Administrator


• Reboot to enable it.

2. NIC setup

2.1. Update NIC FW and driver to latest version

Refer to https://www.intel.com/content/www/us/en/download/15084/intel-ethernet-adapter-complete-driver-pack.html.

2.2. Update the ICE DDP package file: ice.pkg

To get the latest DDP file (ice-1.3.30.0.pkg), visit https://www.intel.com/content/www/us/en/download/19630/intel-network-adapter-driver-for-e810-series-devices-under-linux.html, unzip the driver and go to the DDP directory.

The Windows ICE driver will try to search for the DDP file with the path “c:\dpdk\lib\ice.pkg” or “.\ice.pkg”. Please place the latest DDP file in one of these locations and rename it to ice.pkg. Otherwise, you will see the following error when running the RxTxApp.

ice_load_pkg(): failed to search file path
ice_dev_init(): Failed to load the DDP package, Use safe-mode-support=1 to enter Safe Mode

2.3. Create the temp folder in root directory c:\temp

The library will generate or search for kahawai.lcore file in this path.

3. Install virt2phys Driver

3.1. Compile the driver

Donwnload the source code from <git://dpdk.org/dpdk-kmods>.

Currently the virt2phy driver has a bug to get the valid iova (physical address), please checkout to d1a4940a (windows/virt2phys: add PnpLockdown directive).

Compile the virt2phys project using VS(Visual Studio) 2019, see README in dpdk-kmods repository.

3.2. Driver installation

Option #1: use devcon to install driver

Get devcon.exe from Windows WDK package (if you don’t want WDK, you can refer to https://networchestration.wordpress.com/2016/07/11/how-to-obtain-device-console-utility-devcon-exe-without-downloading-and-installing-the-entire-windows-driver-kit-100-working-method/ for how to get devcon.exe), copy the devcon.exe to your netuio driver folder.

execute command:

devcon.exe install virt2phys.inf root\virt2phys

Option #2: manually install virt2phys driver

• From Device Manager, Action menu, select “Add legacy hardware”.
• It will launch the “Add Hardware Wizard”. Click “Next”.
• Select second option “Install the hardware that I manually select from a list”.
• On the next screen, “Kernel bypass” will be shown as a device class.
• Select it and click “Next”.
• Click “Have Disk”.
• Find location of your virt2phys.inf driver.
• Select it and click “Next”.

The previously installed drivers will now be installed for the “Virtual to physical address translator” device. Here we just go through next and finish buttons.

3.3. When there is a problem with driver installation are needed more steps

• Test sign the driver using a test certificate and then boot the Windows in “Test mode”, or

• Use the boot time option to “Disable driver signature enforcement”.

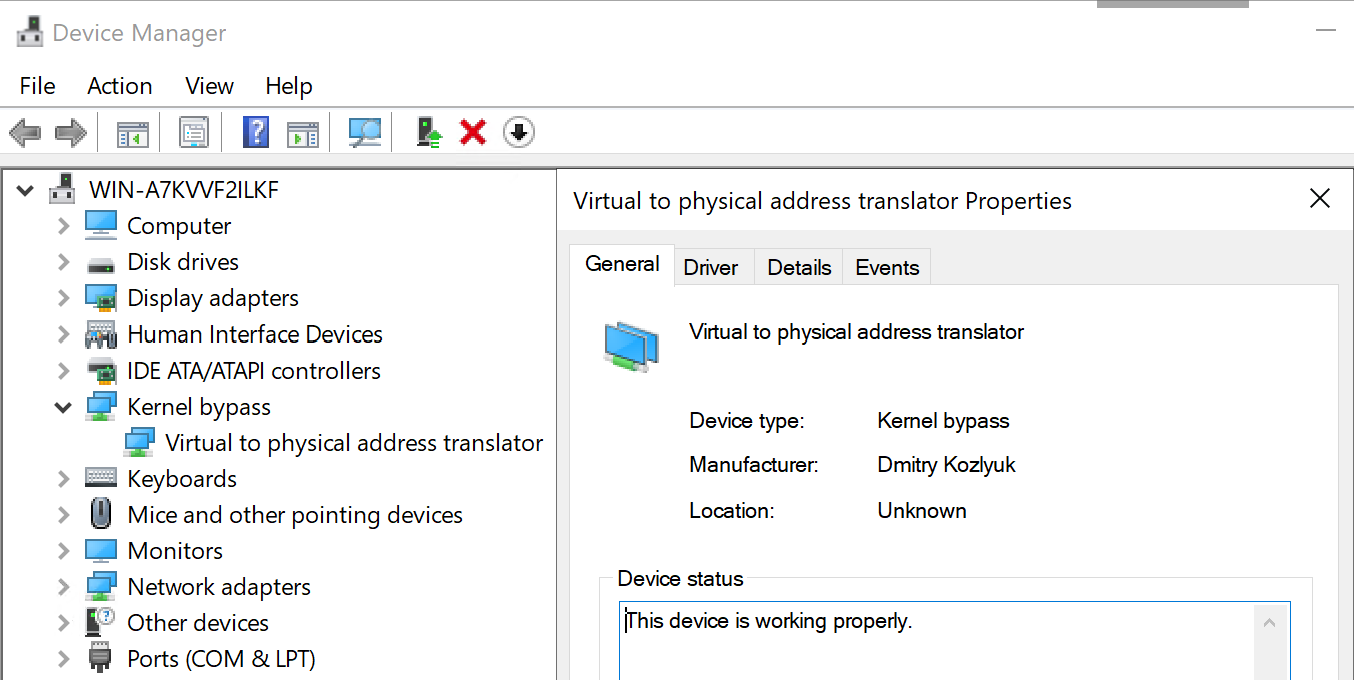

3.4. Make sure that the driver was installed

4. Install netuio driver

4.1. Compile the driver

Compile the netuio project with latest dpdk-kmod code using VS 2019, see README in dpdk-kmods repository.

4.2. Driver installation

Option #1: Use devcon to install driver

Execute command:

devcon.exe update netuio.inf "PCI\VEN_8086&DEV_1592"

“1592” is for E810, You can change it per your NIC type.

Option #2: Manually install netuio driver

• Go to Device Manager -> Network Adapters.
• Right Click on target E810 network adapter -> Select Update Driver.
• Select “Browse my computer for driver software”.
• In the resultant window, select “Let me pick from a list of available drivers on my computer”.
• Select “DPDK netUIO for Network Adapter” from the list of drivers.
• The NetUIO.sys driver is successfully installed.

4.3. Make sure that the driver was installed

4.4. Get the PCI port name used for MTL

In contrast to Linux, Windows does not support the use of the nicctl.sh script, lspci, and dpdk-devbind.py. Once the driver is installed in the Windows UIO section, the NIC is automatically bound to PMD in the Device Manager.

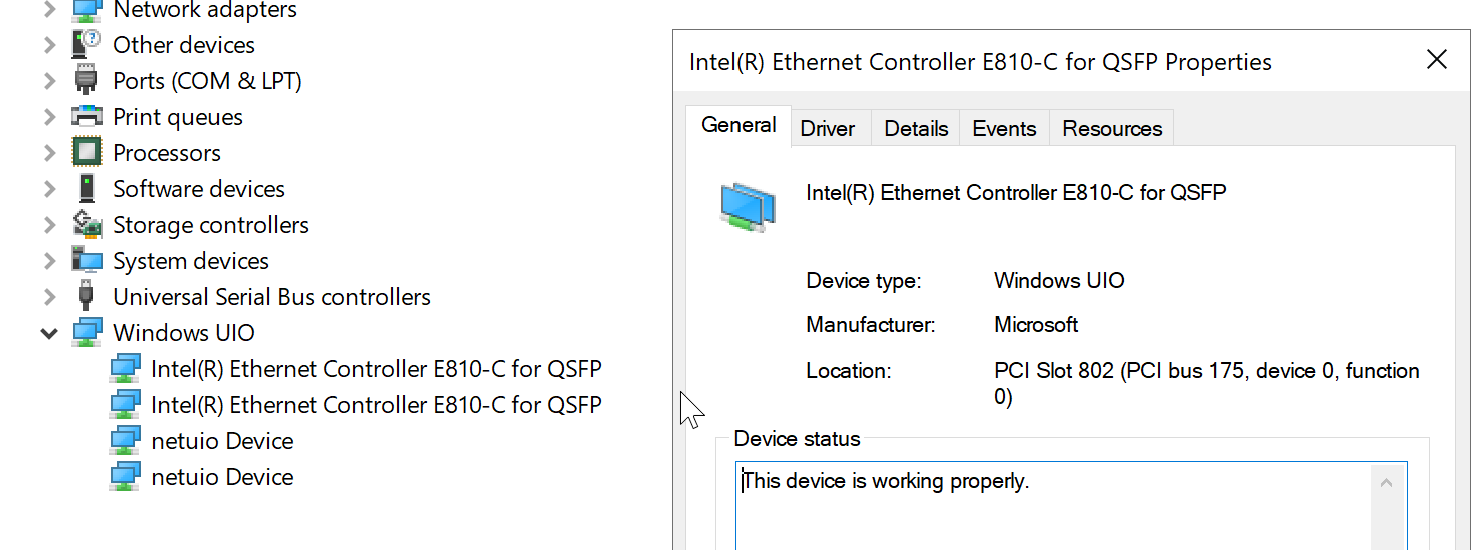

The port name can be obtained from the same location. For instance, as shown in the previous figure, the PCI number in the Location field is bus 175, device 0, function 0. When converted to hexadecimal format, this becomes 0000:af:00.0, which is usable for MTL.

4.5. Install driver for DMA devices

If you want to use the DMA devices, you need to install the netuio driver for them too.

Edit the netuio.inf file in the driver folder, and add the following lines to the [Standard.NTamd64] section.

%Intel.SPR.DSA.Description%=netuio_Device, PCI\VEN_8086&DEV_0B25
%Intel.ICX.CBDMA.Description%=netuio_Device, PCI\VEN_8086&DEV_0B00
%Intel.SKX.CBDMA.Description%=netuio_Device, PCI\VEN_8086&DEV_2021

Add the following lines to the [Strings] section.

Intel.SPR.DSA.Description = "Intel(R) Sapphire Rapids DSA Device"
Intel.ICX.CBDMA.Description = "Intel(R) Ice Lake CBDMA Device"
Intel.SKX.CBDMA.Description = "Intel(R) Sky Lake CBDMA Device"

Then you can use devcon to install the driver or do it manually. For example, if you are using SPR platform, the Device ID of DSA is PCI\VEN_8086&DEV_0B25.

devcon.exe update netuio.inf "PCI\VEN_8086&DEV_0B25"

Once you have installed the driver, you can use Device Manager to check the PCI port of the DMA devices. The usage of the DMA devices is the same as on Linux.

5. Run and test

Use the following command to execute the program on socket 0. Append 1>log.txt 2>&1 to redirect all logs to a file. This is recommended because on Windows, console output is treated as a high-priority UI task and could interfere with the MTL tasklet.

start /Node 0 /B .\build\app\RxTxApp --config_file config\test_tx_1port_1v.json 1>log.txt 2>&1

To determine the socket if you are not clear, access the NIC card driver’s property page and locate the bus number. In a typical two socket system, if the number is greater than 0x80, the corresponding socket is Socket 1; otherwise, it is Socket 0.

Please refer to sections “5. Run the sample application” in the Linux run guide for instructions on how to run the sample application. The Windows version shares the same codebase as the Linux version, and the application/library behavior is the same.

6. Windows TAP support (Optional)

6.1. Download openVPN driver by searching “OpenVPN-2.5.6-I601-amd64.msi” and download the installation file

6.2. Install Windows TAP driver

In the Control Panel->Network and internet->Network Connections, find the “OpenVPN TAP-Windows6” device, set the adaptor IP address, such as 192.168.2.2.

6.3. Rebuild and install MTL lib with “-Denable_tap=true”

meson tap_build -Ddpdk_root_dir=${DPDK_SRC_DIR} -Denable_tap=true
ninja -C tap_build install

6.4. Check if Ping is working

Ping 192.168.2.2 from other machine in the same network such as 192.168.2.3, if have reply, the TAP works.
